Vag Com Kkl 409.1 Software Download

  1. Software For Kkl Cable
  2. Vagkkl Driver For Windows 10
  3. Kkl Va Com 409 1 Download
Home
Products
VCDS-Lite
Download
Current Version

Free kkl vag-com 409.1 driver download download software at UpdateStar. Vag com 409.1 download full version free Get file Click image for larger version vagcom1. Usb cable kkl vag-com 409. Select the com port within vag-com. Related items for 2013 latest version vag-link vw car diagnostic usb cables. Support for dual ecus, no, yes. Vag com usb diagnos.

VCDS-Lite

VCDS-Lite for all 3rd party and 'Dumb' Interfaces on 2005 or older VAG cars

  1. This article will guide you how to correctly install VAG-COM 409.1 KKL USB cable on Windows and VCDS software. CAUTION Using VAG-COM 409.1 KKL: In our experience, we don't recommend depending on VAG-COM 409.1.
  2. VAG-COM 409.1 (KKL) USB automotive software download finder.
  3. Jul 16, 2013 The vendor had e-mailed me directing me to the FTDI website to download the drivers - you were correct! I had opened the dongle and the chip is an FTDI 232BL. I run XP, so downloaded the driver 2.00.00 However, I still can't get it to run: Having plugged in the cable, On the VAG-COM options menu, selecting USB and 'Test' returns.

VCDS-Lite is Copyright 2012 by Ross-Tech LLC / Uwe M. Ross. All rights are reserved.
De-compilation, disassembly, reverse-engineering, alteration, use as a reference tool for the purpose of developing a product with similar functionality, and re-distribution in any form without the prior written consent of the author is prohibited.
The unregistered shareware version of VCDS-Lite is free for non-commercial use
, but no support of any kind is available. Use in a commercial environment requires registration.

By downloading this software, you acknowledge that this Program is provided 'as is' and 'with all faults, defects and errors' and that all use of the Program is at your own full risk. It has been extensively tested, but we cannot guarantee it will work correctly with every system in every car. We will make our best effort to fix any bugs and to enhance the program, but we specifically disclaim any liability for damage to your computer or your car, and we do not promise to have any particular enhancements available on any specific date.

In our experience, we don't recommend depending on VAG-COM 409.1. Because it's functionality is extremely limited. In addition — you'll need to pay extra $97 to upgrade free VCDS-Lite software to full version. And even if you do upgrade — it can only scan vehicles made up to year 2004.

Instructions:

  • If you have a HEX, KEY, KII, or Micro-CAN interface, you're on the wrong page. Please go here instead.

  • Download the self-installing distribution file.

  • Run it and follow the prompts to allow it to install itself.

  • You must install VCDS-Lite on your PC's hard disk! It will not work properly if you try running it directly from a floppy or CD. However, you can use a floppy or CD to move the distribution file from a PC with internet access to another PC that does not have internet access.

  • Connect an appropriate interface between the computer and the car. Ross-Tech does not supply interfaces for VCDS-Lite. VCDS-Lite works with some of our old interfaces from many years ago, as well as many 3rd-party interfaces.

  • Turn the car's ignition switch ON. No need to start the engine.

  • Start the VCDS-Lite program:

    • Click [Options] and select the correct communicationsport.

    • Use [Test] to confirm that the program can use the port and find the interface.

    • Then [Save].

  • Now Play. Make sure the software can reliably access all the control modules that it should in your car. See our Application Charts. Read Fault Codes from some modules.

  • In order to get access to some of the more advanced functions, will need to register and activate the software. The exact differences in functionality between the unregistered/shareware and registered/activated versions are summarized in this handy chart.

Note to registered users updating from older versions:

  • If you're updating from VCDS-Lite version 1.0 or 1.1 you should not need a new activation.
    Simply install VCDS-Lite in the same location and it should use your existing activation.

  • If you're upgrading from an older version such as VAG-COM version 311 or 409, you will need a new activation.

    • First, install the VCDS-Lite and test it thoroughly in shareware mode as described above.

    • Then go here and fill out the appropriate form - or buy a license if you don't have one yet.

Release Notes:

  • VCDS-Lite works with most 3rd-party 'Dumb K-Line' interfaces
    as well as the following ancient low-tech Ross-Tech Interfaces, the last of which we sold early in 2004:
    ISO-COM, FAST-COM, MAX-COM, BI-COM, TWIN-COM, and UNI-COM.

  • VCDS-Lite works with all standard versions of Windows, from Windows 95 though Window 10.
    Both 32-bit and 64-bit Windows builds work fine, but if you're using a 3rd-Party USB interface, keep in mind that it is your interface supplier's responsibility to provide a driver for his hardware.

  • Thief simulator online. VCDS-Lite does NOT work on Windows RT
    Windows RT runs on devices with ARM (instead of x86) CPUs and normal Windows programs like VCDS-Lite simply do not work on them.

  • The default installation folder is C:Ross-TechVCDS-Lite
    If allowed to install in the default location, it should not interfere with an existing Ross-Tech software on your PC.

  • To remove older versions, simply delete the shortcuts from your Start menu and Desktop and delete the old folders which are normally:
    C:VAG-COM or C:VAG-COM-Beta or C:Program FilesVAG-COM or C:Program FilesVAG-COM-Beta

Download:

VCDS-Lite Release 1.2
Published 19. November 2012

Digitally Signed, Self-Installing EXE File ~1.5MB
Includes the VC-Scope and TDI Timing Checker 'Plug-Ins'

Additional handy links:

Home
Products
VCDS-Lite
Download
Current VersionVCDS-Lite

This article will guide you how to correctly install VAG-COM 409.1 KKL USB cable on Windows and VCDS software.

CAUTION Using VAG-COM 409.1 KKL:

In our experience, we don't recommend depending on VAG-COM 409.1. Because it's functionality is extremely limited. In addition — you'll need to pay extra $97 to upgrade free VCDS-Lite software to full version. And even if you do upgrade — it can only scan vehicles made up to year 2004.

For that reason we recommend to get the complete VAG-COM 2020 cable with original, unlocked and full version of VCDS software from Ross-Tech™ — by clicking here.

Free Vag Com 311 Usb Drivers Download - Vag Com 311 Usb ..

STEP 1: Download and Install VAG-COM KKL 409.1 Drivers

(DO NOT connect cable to your computer yet. Only do this when you're instructed below.)

Start by downloading the VAG-COM Driver Pack 1.

Here's how to install on different Windows versions..

Windows Vista, 7, 8, 8.1, 10:

Uncompress the file. Double-click on 'Install.exe' to install the drivers. When complete — plug in cable into any USB port on your computer and wait for automatic installation to complete.

If install is successful, move onto Step 2.

If installation fails, see below: Troubleshooting: If Drivers Failed To Install

Windows XP:

Kkl 409.1 Vag-com 409 Software Download

Vag Com Kkl 409.1 Software Download
  1. Uncompress the file. Double-click on 'Install.exe' to install the drivers.
  2. Plug cable into any computer's USB port.
  3. 'Found New Hardware Wizard' will start and it will ask you 'Can Windows connect to Windows Update to search for the software?'. Select 'Yes'.
  4. Select 'Install the software automatically'.
  5. After the installation is complete, click 'Finish'.
  6. 'Found New Hardware Wizard' will start once again because there are two drivers for this cable.
  7. Go through the same steps as explained above to install this second driver.

If install is successful, move onto Step 2.

If installation fails, see below: Troubleshooting: If Drivers Failed To Install

Troubleshooting: If Drivers Failed To Install:

Installation failed? Download here VAG-COM Driver Pack 2.

Unextract the file into any folder. Then while your cable is connected to the computer — go Device Manager.

  • Windows Vista/7/8/10: Control Panel » System » Device Manager
  • Windows XP: Control Panel » System » 'Hardware' tab » Device Manager

You'll see a device similar to 'USB Serial Port' under either 'Other devices' or 'Ports (COM & LPT)'.

Right-click and choose 'Update Driver Software'. Like this:

Then select the location where you unextracted Driver Pack 2. Let it install.

Com
STEP 2: Discover Port Number that VAG-COM KKL Cable is Using

Go to Control Panel.

  • Windows Vista/7/8/10: Control Panel » System » Device Manager
  • Windows XP: Control Panel » System » 'Hardware' tab » Device Manager

Expand 'Other devices' or 'Ports (COM & LPT)'. Whichever contains 'USB Serial Port'.

Next to 'USB Serial Port' — you'll see a number.

If the COM port number is between 1-4, then everything is fine. Move onto Step 3.

If the COM port number is above 4, then we'll have to change it so it's between 1-4. Here's how..

Right-click on 'USB Serial Port' and click on 'Properties' — as per below pic:

Then:

  1. Click: Port Settings
  2. Click: Advanced
  3. For 'COM Port Number' — you MUST choose any number between 1-4.

That's it! Now let's test if everything is working. Move onto next step below..

Cable should be plugged into computer.

Software For Kkl Cable

  1. Start VCDS-Lite software.
  2. Click 'Options' button.
  3. You will see 'Select COM Port' box. Select the 'COM Port' number as explained in Step 2.
  4. Click the ‘Test’ button.
  5. If everything is good, it should display 'Interface Status: Found!'.
  6. You can now connect other end of cable to car. Turn on ignition. And you're ready to start diagnosing!

If test is not successful — check the following:

  1. Other software or devices using USB ports or that same COM Port could be conflicting. You should uninstall the suspected software or device for troubleshooting this problem.
  2. It should be noted that VAG-COM 409.1 KKL cable does not work on vehicles running on CAN-BUS System.
  3. Cable must be plugged into the vehicle with ignition ON.
  4. Test the cable with each COM Port from 1 to 4 in Windows Device Manager.
  5. Make sure that the driver is installed and configured as explained in Step 1.
  • Only Audi, Volkswagen, Skoda and Seat vehicles are supported. Other brands will only work for generic OBD-II functions.
  • If VAG-COM 409.1 KKL cable doesn't connect — or if you get the error message 'Can't Synch Baud Rate' — then go to Options and set Start Baud to 9600. If 9600 doesn't work, try 4800 and 1200. Turn the vehicle's ignition OFF and back ON after each failed attempt to connect.
  • If you have installed VCDS software before or from another source, uninstall all versions of VCDS software right now, and delete directory 'C:Ross-Tech'. Then install latest version of VCDS-Lite software by clicking here.

For further information and instructions for troubleshooting, visit the following links:


How to Install & Register VCDS-Lite software That Came With Your VAG-COM 409.1 KKL Cable

  • Home>OBDII Cable Connectors> USB KKL 409.1 Vag Com Cable Vag com usb kkl 409.1 obd2 diagnostic interface with FT232RL chip can do programming function
Best Deals
Clearance Sale
Related Items
$19.99
$17.99
$247.99
$79.99 $74.99
Save: 6% off
$39.99
Product Description
Customers' Reviews
FAQ

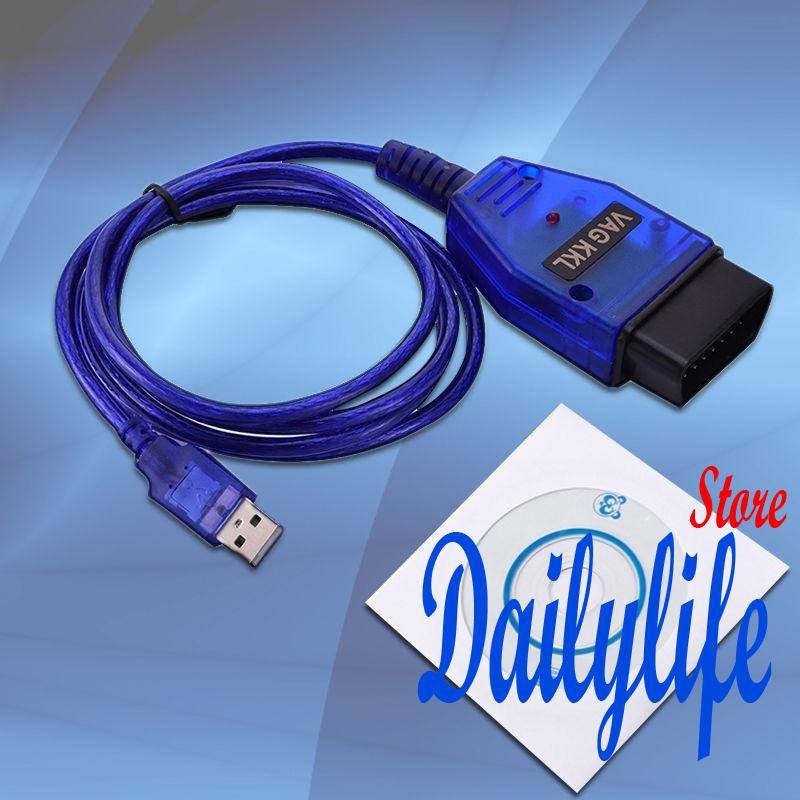

USB KKL 409.1 Vag Com Cable with vag com 409.1 download software. Vag com usb kkl 409.1 obd2 diagnostic interface with FT232RL chip. V409.1 usb kkl diagnostic interface with FT232RL chip can do programming function.

Vagkkl Driver For Windows 10

USB KKL 409.1 Vag Com Cable Vag com usb kkl 409.1 obd2 diagnostic interface with FT232RL chip can do programming function
V409.1 usb kkl diagnostic interface with FT232RL chip can do programming function

Software: vag com 409.1 download
Feature: With FT232RL chip
USB KKL 409.1 Vag Com Cable Functions:
Module Version - identify the control module part number and coding version
DTC Memory - read and clear manufacturer diagnostic trouble codes
Actual Values - access live data
Activation - selected components can be activated
Code Module - code new control modules (most models through 2002)
Adaptation - read/reset Service Light parameters, view/change block learn values
Basic Settings - view and change control module default settings (Excluding 1.8T 01 and newer)
Individual Values - read individual measuring values
Readiness Code - Check status of applicable emissions related systems
Remote Control Programming - program Radio Frequency keys
Key Matching - match keys to Immobilizer control module (5 digit)
Vag com usb kkl 409.1 obd2 diagnostic interface support Workable Models
For AUDI

80 2x2
100 2x2
200 2x2
A2 16 PINS
A3 16 PINS
A4 16 PINS
A4 Cabriolet 16 PINS
A6 16 PINS
A8 16 PINS
Q7 16 PINS
S2 16 PINS
S3 16 PINS
TT 16 PINS
SEAT
Alhambra 16 PINS
Altea 16 PINS
Arosa 16 PINS
Cordoba 16 PINS
Ibiza 16 PINS
Inca 16 PINS
Leon MK1 16 PINS
Leon MK2 16 PINS
Toledo 16 PINS
SKODA
Fabia 16 PINS
Felicia 16 PINS
Octavia Mk1 16 PINS
Octavia MK2 16 PINS
Superb 16 PINS
For Volkswagen
Beetle 16 PINS
Bora 16 PINS
Caddy 16 PINS
Corrado 16 PINS
Golf MK2 16 PINS
Golf MK3 16 PINS
Golf MK4 16 PINS
Jetta MK3 16 PINS
Jetta MK4 16 PINS
Lupo 16 PINS
Passat MK3 16 PINS
Passat MK4 16 PINS
Polo MK3 16 PINS
Polo MK4 16 PINS
Touran 16 PINS
Touareg 16 PINS
Transporter T3 16 PINS
Transporter T4 16 PINS
Transporter T5 16 PINS
What can this vag com usb kkl interface be used for?
This interface (adapter) is used as an interface and a USB cable to connect a VW/AUDI vehicle to a PC with USB port for on-board diagnostics (OBD).
Vag com usb kkl 409.1 obd2 diagnostic interface Specifications:
OBDII Plug: J1962 16-Pin Male (to Car)
Connection Port: USB port
Length: 1.8 meters
Weight: About 150g
Color: Black
Powered from car battery over OBD2 connector
